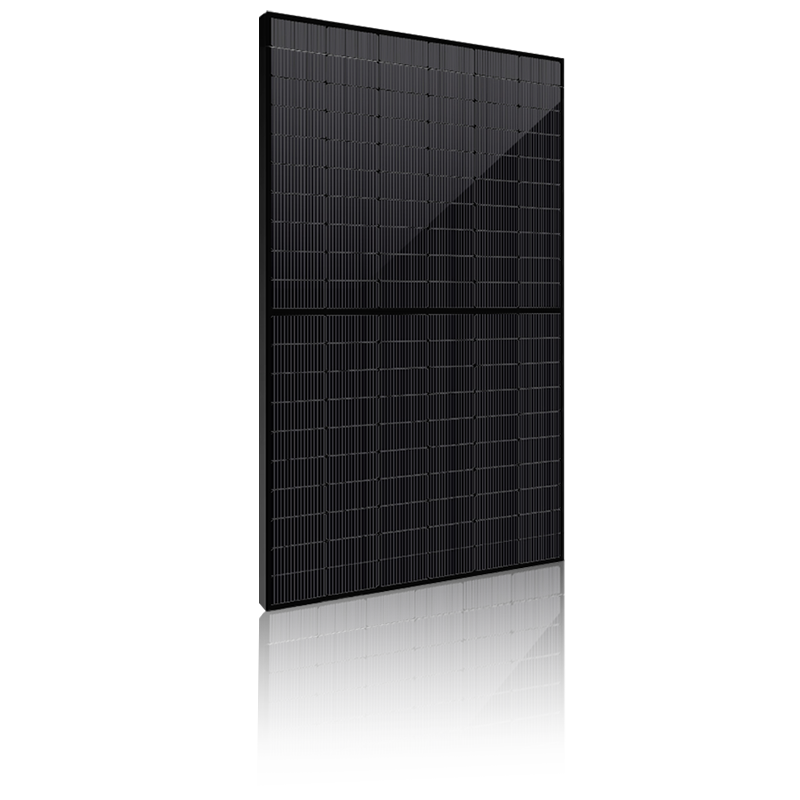

SPDGxxx-N120M10 (455-490W) Double Glass Black Frame Black Mesh
PREV：SPDGxxx-N108M10 (410-440W) Double Glass Black Frame Full Transparent
NEXT：SPDGxxx-N120M10 (455-490W) Double Glass Black Frame Full Transparent
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25℃
Typical type 455W 460W 465W 470W 475W 480W 485W 490W
Max power(Pmax) 455 460 465 470 475 480 485 490
Max power voltage(Vmp) 34.76 34.88 34.99 35.11 35.24 35.38 35.52 35.66
Max power current(lmp) 13.09 13.19 13.29 13.39 13.48 13.57 13.66 13.75
Open circuit voltage(Voc) 42.1 42.24 42.38 42.52 42.66 42.8 13.66 13.75
Short circuit current(lsc) 13.83 13.94 14.03 14.12 14.2 14.29 42.94 14.47
Module Efficiency(%) 21.01 21.24 21.47 21.70 21.93 22.16 14.38 22.62
Max system voltage DC 1500V(TÜV,UL)
Maximum Series Fuse Rating 30A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 455W 460W 465W 470W 475W 480W 485W 490W
Max power(Pmax) 342 346 350 350 358 362 363 366
Max power voltage(Vmp) 32.6 32.7 32.9 33 33.2 33.3 33.20 33.30
Max power current(Imp) 10.48 10.56 10.63 10.71 10.77 10.86 10.92 11.00
Open circuit voltage(Voc) 39.6 39.8 39.9 40.1 40.2 40.4 40.20 40.30
Short circuit current(Isc) 11.15 11.24 11.31 11.38 11.44 11.52 11.59 11.66

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 455W 460W 465W 470W 475W 480W 485W 490W
Total power Pmax/W 523.25 529 534.75 540.5 546.25 552 557.75 563.5
Vmp/V(Total) 34.76 34.88 34.99 35.11 35.24 35.38 35.25 35.66
Imp/A(Total) 15.05 15.17 15.28 15.39 15.5 15.6 15.7 15.8
Voc/V(Total) 42.1 42.24 42.38 42.52 42.66 42.8 42.94 43.06
Isc/A(Total) 15.9 16.03 16.13 16.24 16.33 16.43 16.54 16.64

Mechanical Data
Dimensions 1910x1134x35mm
Weight 26kg
Glass
(F) 2.0mm ultra clear embossed semi-tempered coated glass
(B) 2.0mm black mesh semi-tempered glass
Output cables 4mm², symmetrical lengths 1100mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline, 182x91mm
Number of cells
 120cells ( Half-Cell )
