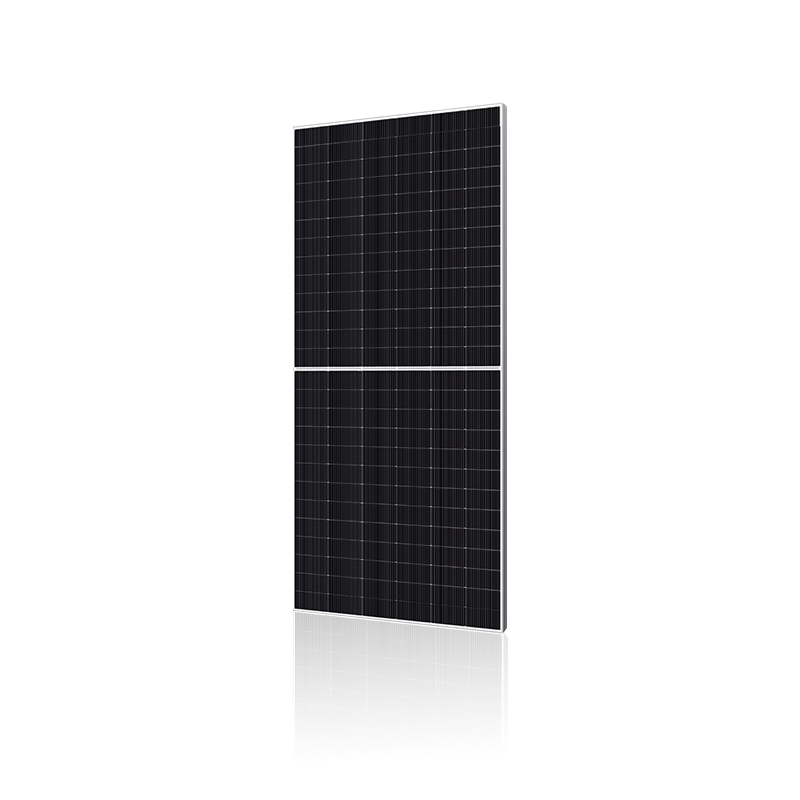

SPDGxxx-N156R10（625-650W) Double Glazed Silver Framed White Mesh
PREV：SPDGxxx-N144R10（575-595W) Double Glazing Silver Frame 30mm
NEXT：SPxxx-N108R10（425-450W) Black Frame
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 625W 630W 635W 640W 645W 650W
Max power(Pmax) 625 630 635 640 645 650
Max power voltage(Vmp) 46.54 46.64 46.73 46.82 46.91 47.04
Max power current(lmp) 13.43 13.51 13.59 13.67 13.75 13.82
Open circuit voltage(Voc) 56.2 56.29 56.4 56.51 56.62 56.73
Short circuit current(lsc) 13.99 14.07 14.14 14.21 14.28 14.35
Module Efficiency(%) 21.83 22.00 22.18 22.35 22.53 22.70
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 30A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 625W 630W 635W 640W 645W 650W
Max power(Pmax) 471.6 475.6 479.5 483.3 487.3 491.2
Max power voltage(Vmp) 44.2 44.3 44.4 44.5 44.6 44.8
Max power current(Imp) 10.68 10.74 10.79 10.86 10.92 10.97
Open circuit voltage(Voc) 53.1 53.2 53.3 53.4 53.5 53.6
Short circuit current(Isc) 11.28 11.34 11.40 11.45 11.51 11.56

Electrical Characteristics with 15% Rear Side Power Gain
Front power Pmax/W 625W 630W 635W 640W 645W 650W
Total power Pmax/W 718.75 724.5 730.25 736 741.75 747.5
Vmp/V(Total) 46.54 46.64 46.73 46.82 46.91 47.04
Imp/A(Total) 15.44 15.53 15.63 15.72 15.81 15.89
Voc/V(Total) 56.2 56.29 56.4 56.51 56.62 56.73
Isc/A(Total) 16.09 16.18 16.26 16.34 16.42 16.5

Mechanical Data
Dimensions 2525x1134x35mm
Weight 36kg
Glass

(F) 2.0mm ultra clear embossed double layer colorless glass

(B) 2.0mm white mesh glazed tempered glass
Output cables 4mm², symmetrical lengths 1400mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline, 182mm×93.4mm
Number of cells
 156 cells ( Half-Cell )
