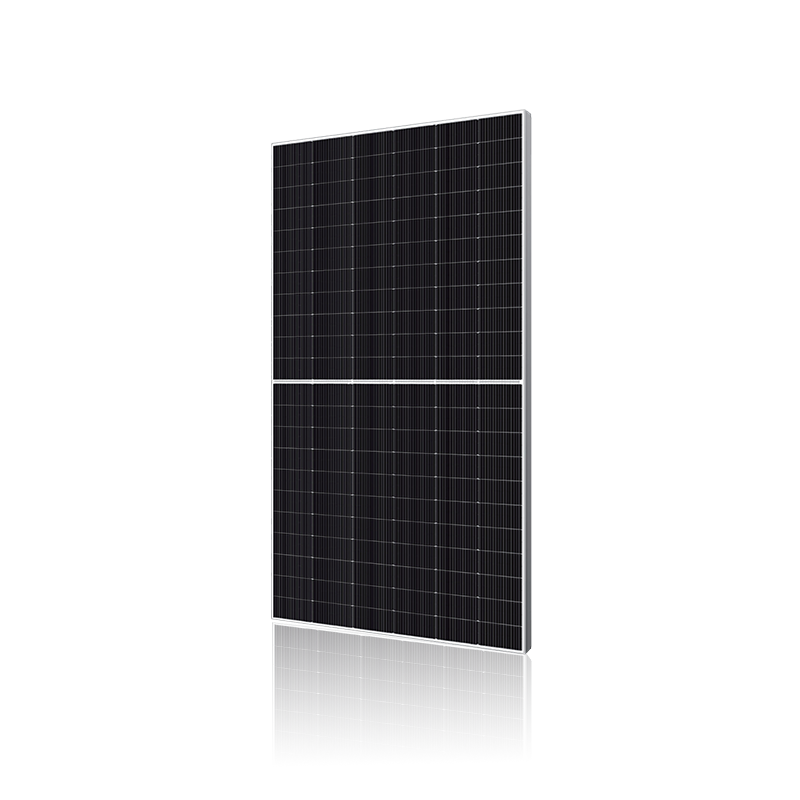

SPxxx-N132R10（520-545W) Silver Frame

  • Warranty & Guarantee
  • Withstand Strong
  • Pid Resistance
  • R&D And Production
  • High Efficiency
Contact Us Download PDF
SPxxx-N132R10（520-545W) Silver Frame
PREV：SPxxx-N120R10（480-505W) Silver Frame
NEXT：SPxxx-N144R10（575-610W）Silver Frame
Electrical Parameters At Standard Test Conditions
STC: AM=1.5, 1000W/m², Cells Temperature25°C
Typical type 520W 525W 530W 535W 540W 545W
Max power(Pmax) 520 525 530 535 540 545
Max power voltage(Vmp) 39.25 39.39 39.53 39.66 39.80 39.96
Max power current(lmp) 13.25 13.33 13.41 13.49 13.57 13.64
Open circuit voltage(Voc) 47.46 47.59 47.72 47.87 48.01 48.14
Short circuit current(lsc) 13.80 13.88 13.96 14.03 14.11 14.19
Module Efficiency(%) 21.38 21.58 21.79 21.99 22.20 22.41
Max system voltage DC 1500V(TÜV)
Maximum Series Fuse Rating 25A

Electrical Parameters At NMOT Test Conditions

Irradiance 800W/m², Ambient Temperature 20℃, AM 1.5, Wind Speed 1m/s
Typical type 520W 525W 530W 535W 540W 545W
Max power(Pmax) 392.4 396.3 400.2 404.1 408.1 411.9
Max power voltage(Vmp) 37.3 37.4 37.6 37.7 37.9 38
Max power current(Imp) 10.53 10.60 10.66 10.72 10.78 10.84
Open circuit voltage(Voc) 44.8 45 45.1 45.2 45.4 45.5
Short circuit current(Isc) 11.12 11.19 11.25 11.31 11.37 11.44

Mechanical Data
Dimensions 2145x1134x35mm
Weight 25.5kg
Glass

3.2mm ultra clear embossed tempered coated glass
Output cables 4mm², symmetrical lengths 1300mm
Connectors MC4 compatible IP68
Cell type
 N type Mono-Crystalline, 182mm×93.4mm
Number of cells
 132cells ( Half-Cell )
