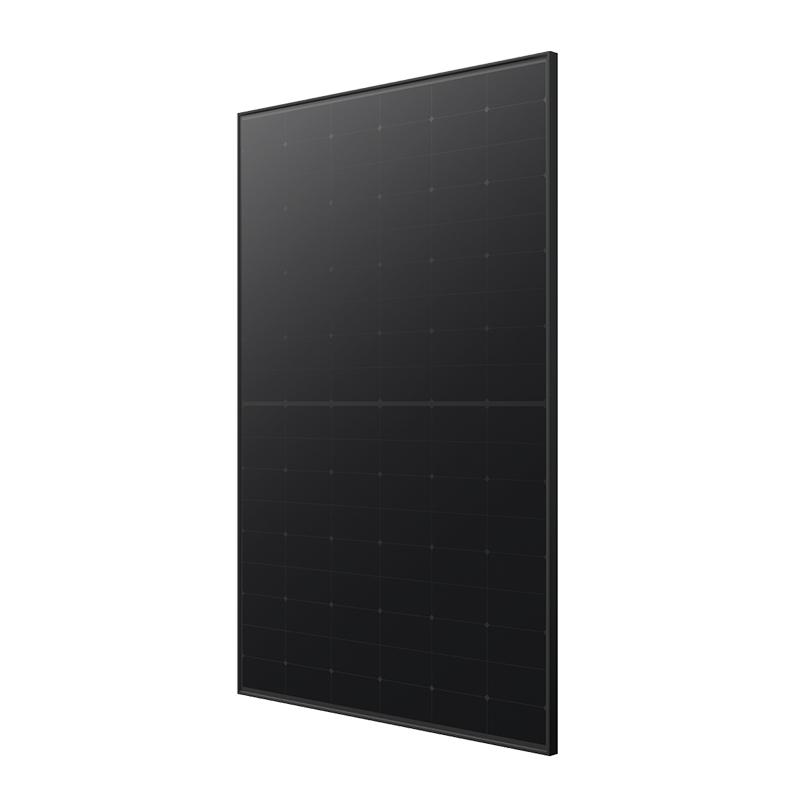

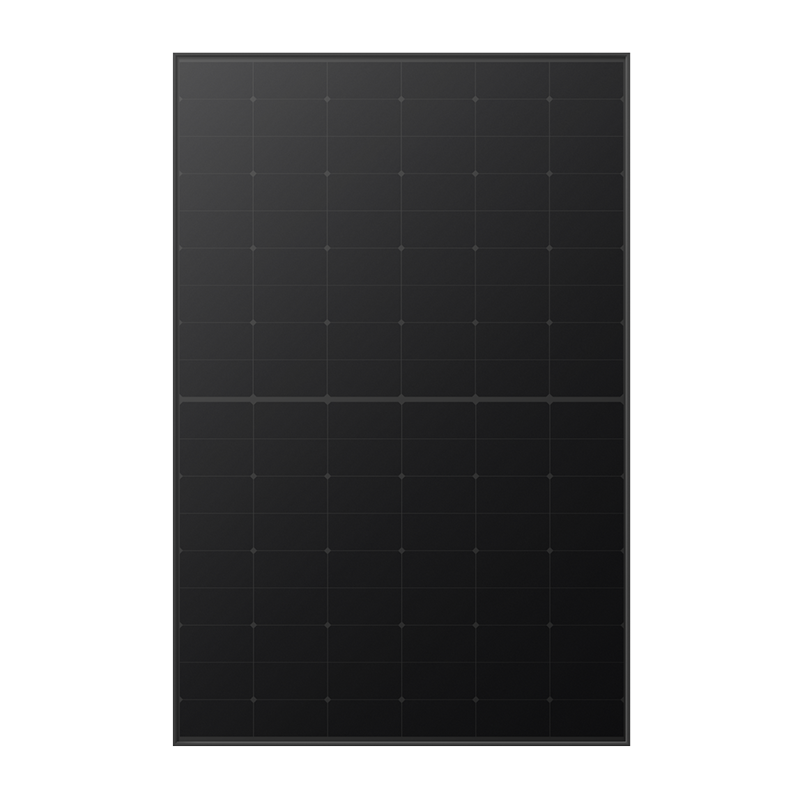

SPDGxxx-BC108RL10(470-485W) Black Frame Black Grid 30mm

  • Excellent Micro-crack Resistance
  • Superior Temperature Coefficient
  • Higher Generated Energy
  • Partial Shading Optimisation
Contact Us Download PDF
SPDGxxx-BC108RL10(470-485W) Black Frame Black Grid 30mm
PREV：No next article
NEXT：No previous article
Electrical Parameters At Standard Test Conditions
Model of modules SPDG470-BC108RL10 SPDG475-BC108RL10 SPDG480-BC108RL10 SPDG485-BC108RL10
STC NMOT STC NMOT STC NMOT STC NMOT
Power maximum (Pmax/W) 470 357 475 361 480 365 485 369
Maximum power voltage (Vmp) 33.29 31.6 33.4 31.71 33.51 31.82 33.62 31.93
Maximum power current (Imp) 14.13 11.3 14.23 11.39 14.33 11.48 14.43 11.56
Open-circuit voltage (Voc) 40.31 38.28 40.42 39.89 40.53 38.5 40.64 39.61
Short-circuit current (Isc) 14.78 11.84 14.88 11.93 14.98 12.02 15.08 12.1
Module efficiency 23.03% 23.27% 23.52% 23.76%

STC(Electrical parameters at standard test conditions (STC:AM=1.5,10oow/m²,Cells Temperature25°C）
NMOT(Irradiance 80ow/m²,Ambient Temperature 20°C,AM1.5,Wind Speed 1m/s）

ELECTRICAL CHARACTERISTICS WITH DIFFERENT REAR SIDE POWER GAIN (REFERENCE TO 475W FRONT)
Pmax gain 0.05 0.1 0.15 0.2 0.25
Power maximum (Pmax/W) 499 523 546 570 594
Maximum power voltage (Vmp) 33.4 33.4 33.4 33.4 33.4
Maximum power current (Imp) 14.93 15.64 16.35 17.07 17.78
Open circuit voltage (Voc) 40.42 40.42 40.42 40.42 40.42
Short circuit current (Isc) 15.62 16.37 17.11 17.86 18.6
Mechanical Data
Module size (LWH) 1800*1134*30mm
Weight 23.5kg
Cell 108(6*18)
Front glass 2.0mm semi-tempered glass
Back glass 1.6mm semi-tempered glass
Frame Black anodized aluminum alloy frame
Junction box IP68
Output wire 4mm²
Wire length Line length 1200mm / customized
Connector EVO2A
Packing specification 36pcs per pallet / 216 pcs per 20' GP / 864pcs per 40' HC
