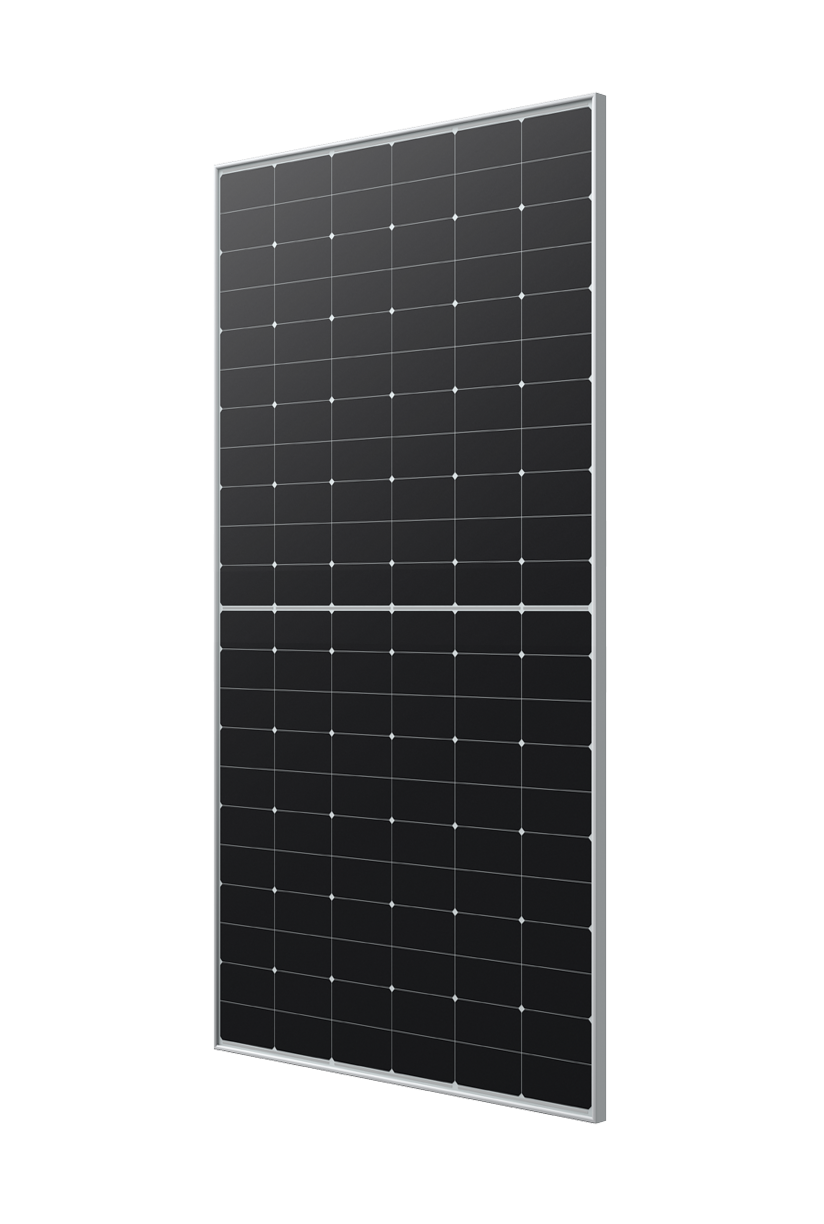

SPDGxxx-BC132R12 (640-665W) Silver Frame With White Mesh-30mm

  • Excellent Micro-crack Resistance
  • Superior Temperature Coefficient
  • Higher Generated Energy
  • Partial Shading Optimisation
Contact Us Download PDF
SPDGxxx-BC132R12 (640-665W) Silver Frame With White Mesh-30mm
PREV：SPDGxxx-BC108RL10(470-485W) Black Frame Black Grid 30mm
NEXT：No previous article
Electrical Parameters At Standard Test Conditions
Model of modules SPDG650-BC132R12 SPDG655-BC132R12 SPDG660-BC132R12 SPDG665-BC132R12
STC NMOT STC NMOT STC NMOT STC NMOT
Power maximum (Pmax/W) 650 495 655 499 660 502 665 506
Maximum power voltage (Vmp) 40.98 38.95 41.08 39.04 41.18 39.14 41.28 39.23
Maximum power current (Imp) 15.86 12.72 15.94 12.78 16.03 12.85 16.11 12.92
Open-circuit voltage (Voc) 49.72 47.25 49.82 47.35 49.92 47.44 50.02 47.54
Short-circuit current (Isc) 16.54 13.28 16.62 13.35 16.70 13.41 16.78 13.48
Module efficiency 24.06% 24.25% 24.43% 24.62%

STC(Electrical parameters at standard test conditions (STC:AM=1.5,10oow/m²,Cells Temperature25°C）
NMOT(Irradiance 80ow/m²,Ambient Temperature 20°C,AM1.5,Wind Speed 1m/s）

ELECTRICAL CHARACTERISTICS WITH DIFFERENT REAR SIDE POWER GAIN (REFERENCE TO 650W FRONT)
Pmax gain 0.05 0.1 0.15 0.2 0.25
Power maximum (Pmax/W) 683 715 748 780 813
Maximum power voltage (Vmp) 40.98 40.98 40.98 40.98 40.98
Maximum power current (Imp) 16.65 17.45 18.24 19.03 19.83
Open circuit voltage (Voc) 49.72 49.72 49.72 49.72 49.72
Short circuit current (Isc) 17.37 18.19 19.02 19.85 20.68
Mechanical Data
Module size (LWH) 2382*1134*30mm
Weight 33.5kg
Cell 132(6*22)
Front glass 2.0mm heat strengthened glass
Back glass 2.0mm heat strengthened glass
Frame Silver anodized aluminum alloy frame
Junction box IP68
Output wire 4mm²
Wire length Line length 1400mm / customized
Connector EVO2A
Packing specification 36pcs per pallet / 144 pcs per 20' GP / 720pcs per 40' HC
