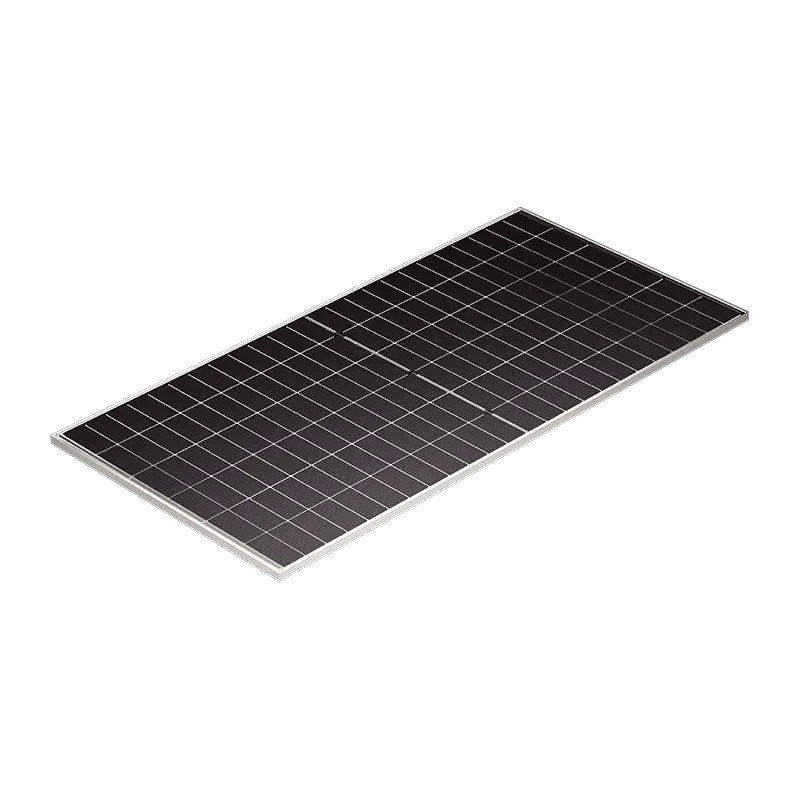

SPDGxxx-N144RX10 (625-640W) Silver Frame Full Transparency

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SPDGxxx-N144RX10 (625-640W) Silver Frame Full Transparency
PREV：SPDGxxx-N132RX10 (575-590W) Silver Frame White Mesh
NEXT：No previous article
Electrical Parameters At Standard Test Conditions
Model of modules SPDG625-N144RX10 SPDG625-N144RX10 SPDG630-N144RX10 SPDG630-N144RX10 SPDG635-N144RX10 SPDG635-N144RX10 SPDG640-N144RX10 SPDG640-N144RX10
STC NMOT STC NMOT STC NMOT STC NMOT
Power (Pmax/W) 625 471.6 630 475.4 635 479.5 640 483.4
Maximum power voltage (Vmp) 43.68 41 43.88 41.1 44.07 41.3 44.26 41.5
Maximum power current (Imp) 14.31 11.52 14.36 11.56 14.41 11.6 14.46 11.64
Open circuit voltage (Voc) 52.25 49.4 52.45 49.6 52.65 49.8 52.85 50
Short circuit current (Isc) 15.13 12.19 15.18 12.23 15.23 12.27 15.28 12.31
Module efficiency 22.36% 22.54% 22.72% 22.90%

STC ( Electrical parameters at standard test conditions. STC: AM=1.5, 1000W/m², Cells Temperature25℃ )

NMOT ( Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s )

Electrical Parameters At NMOT Test Conditions

ELECTRICAL CHARACTERISTICS WITH 15% REAR SIDE POWER GAIN
Front power Pmax/W 718.75 724.5 730.25 736
Maximum power voltage (Vmp) 43.68 43.88 44.07 44.26
Maximum power current (Imp) 16.45 16.51 16.57 16.63
Open circuit voltage (Voc) 52.25 52.45 52.65 52.85
Short circuit current (Isc) 17.4 17.46 17.51 17.57
Mechanical Data
Module size (L*W*H) 2465x1134x35mm
Weight 33.6kg
Cell 144 cells, N-type Mono-Crystalline, 182.2mm×99.5mm
Front glass 2.0mm, Anti-Reflection Coating
Back glass 2.0mm, Heat-Strengthened Glass
Frame Anodized aluminum alloy
Junction box IP68, 3 bypass diodes
Output wire 4mm²
Wire length Line length 1400mm/customized
Connector MC4 Compatible
Packing Specification 31 pcs/Pallet ; 496 pcs/40’HQ
