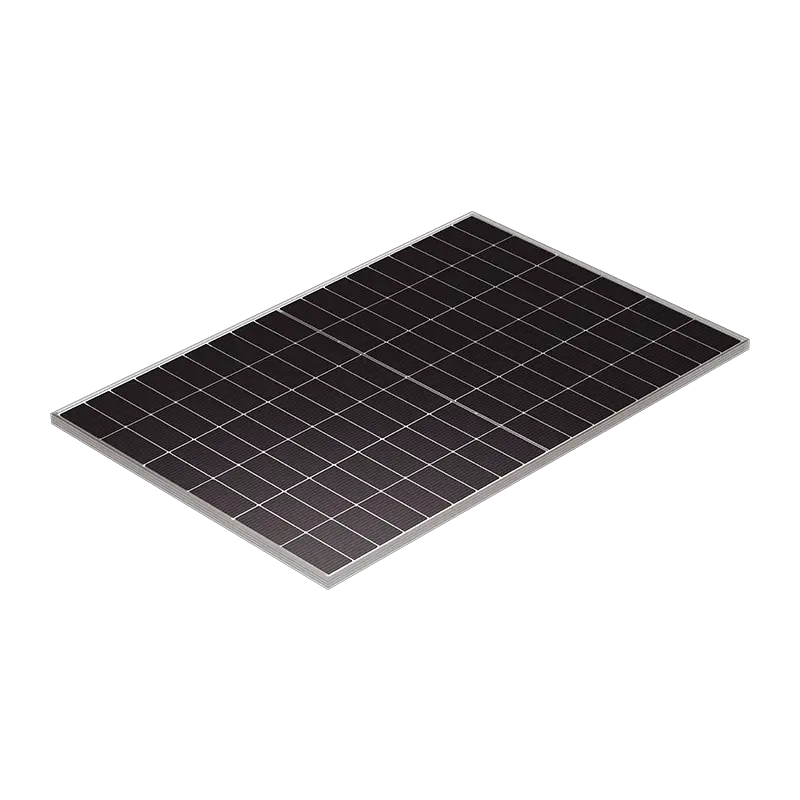

SPDGxxx-N108R10 (435-450W) Silver Frame White Mesh

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SPDGxxx-N108R10 (435-450W) Silver Frame White Mesh
PREV：SPxxx-N132M12 (695-710W) Silver Frame White Mesh
NEXT：SPDGxxx-N120R10 (485-500W) Silver Frame White Mesh
Electrical Parameters At Standard Test Conditions
Model of modules SPDG435-N108R10 SPDG440-N108R10 SPDG445-N108R10 SPDG450-N108R10
STC NMOT STC NMOT STC NMOT STC NMOT
Power (Pmax/W) 435 328.6 440 332.4 445 336.5 450 340.3
Maximum power voltage (Vmp) 32.41 30.8 32.6 31 32.79 31.2 32.98 31.3
Maximum power current (Imp) 13.43 10.68 13.5 10.73 13.58 10.8 13.65 10.86
Open circuit voltage (Voc) 39.09 36.9 39.27 37.1 39.45 37.3 39.63 37.5
Short circuit current (Isc) 13.98 11.27 14.05 11.32 14.13 11.39 14.21 11.45
Module efficiency 21.77% 22.02% 22.27% 22.52%

STC ( Electrical parameters at standard test conditions. STC: AM=1.5, 1000W/m², Cells Temperature25℃ )

NMOT ( Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s )

Electrical Parameters At NMOT Test Conditions

ELECTRICAL CHARACTERISTICS WITH 15% REAR SIDE POWER GAIN
Front power Pmax/W 500.25 506 511.75 517.5
Maximum power voltage (Vmp) 32.41 32.6 32.79 32.98
Maximum power current (Imp) 15.44 15.52 15.61 15.69
Open circuit voltage (Voc) 39.09 39.27 39.45 39.63
Short circuit current (Isc) 16.08 16.16 16.25 16.34
Mechanical Data
Module size (LWH) 1762×1134×33mm
Weight 23.8kg
Cell 108 cells, N-type Mono-Crystalline, 182mm×93.4mm
Front glass 2.0mm, Anti-Reflection Coating
Back glass 2.0mm, Heat-Strengthened Glass
Frame Anodized aluminum alloy
Junction box IP68, 3 bypass diodes
Output wire 4mm²
Wire length Line length 1100mm/customized
Connector MC4 Compatible
Packing Specification 33 pcs/Pallet; 858 pcs/40' HQ
