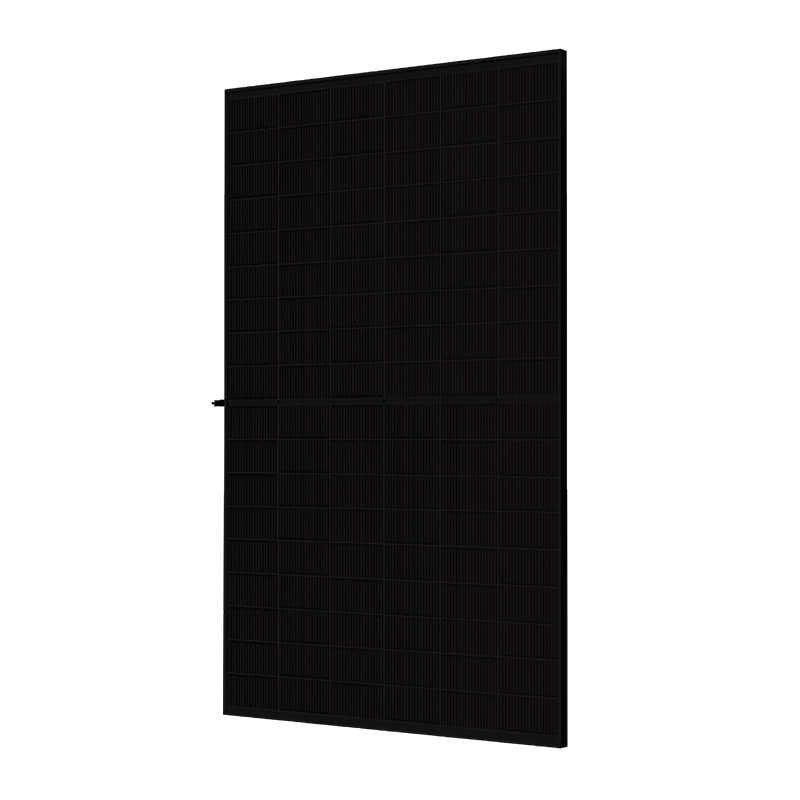

SPDGxxx-N108R12(500-515W) Black Frame Black Grid 35mm

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SPDGxxx-N108R12(500-515W) Black Frame Black Grid 35mm
PREV：SPDGxxx-N132R12（620-635W）Double Glass Full Transparency Silver Frame 30mm
NEXT：No previous article
Electrical Parameters At Standard Test Conditions
Model of modules SPDG500-N108R12 SPDG505-N108R12 SPDG510-N108R12 SPDG515-N108R12
STC NMOT STC NMOT STC NMOT STC NMOT
Power (Pmax/W) 500 378.1 505 382.2 510 386.4 515 390.3
Maximum power voltage (Vmp) 33.38 31.4 33.6 31.6 33.85 31.9 34.09 32.1
Maximum power current (Imp) 14.98 12.04 15.03 12.08 15.07 12.12 15.09 12.18
Open circuit voltage (Voc) 40.01 37.9 40.24 38.1 40.48 38.4 40.71 38.6
Short circuit current (Isc) 15.83 12.75 15.88 12.79 15.93 12.83 15.98 12.87
Module efficiency 22.5% 22.72% 22.95% 23.17%

STC ( Electrical parameters at standard test conditions. STC:AM=1.5, 1000W/m² ,Cells Temperature25℃ )

NMOT ( Irradiance 800W/m²，Ambient Temperature 20℃,AM1.5,Wind Speed 1m/s )

ELECTRICAL CHARACTERISTICS WITH 15% REAR SIDE POWER GAIN
Front power Pmax/W 575 580.75 586.5 592.25
Maximum power voltage (Vmp) 33.38 33.6 34.85 34.09
Maximum power current (Imp) 17.23 17.28 17.33 17.37
Open circuit voltage (Voc) 40.01 40.24 40.48 40.71
Short circuit current (Isc) 18.2 18.26 18.32 18.38
Mechanical Data
Module size (L*W*H) 1960×1134×35mm
Weight 26.6kg
Cell 108 cells,N type Mono-Crystalline, 182.2mm×105 mm
Front glass 2.0mm, Anti-Reflection Coating
Back glass 2.0mm, Heat strengthened Glass
Frame Anodized Aluminum alloy
Junction box IP68, 3 bypass diodes
Output wire 4mm²
Wire length Line length 1300mm/customized
Connector MC4 Compatible
Packing Specification 31 pcs/Pallet ; 744pcs/40’ HQ
