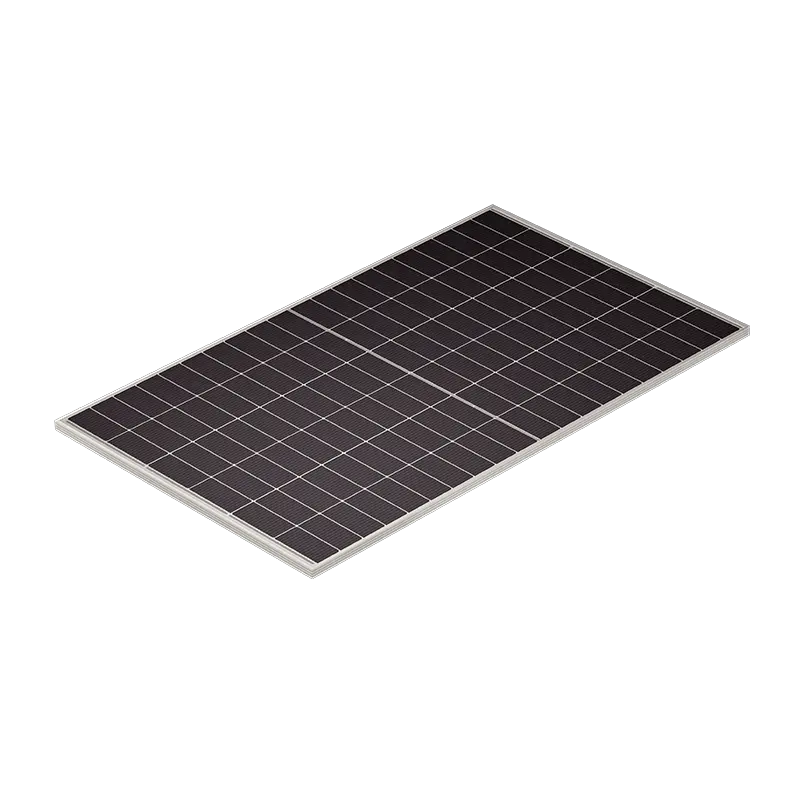

SPDGxxx-N120R12 (560-575W) Silver Frame White Mesh

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SPDGxxx-N120R12 (560-575W) Silver Frame White Mesh
PREV：SPDGxxx-N108R12 (500-515W) Black Frame Black Mesh
NEXT：SPDGxxx-N132R12 (620-635W) Silver frame White mesh
Electrical Parameters At Standard Test Conditions
Model of modules SPDG560-N120R12 SPDG560-N120R12 SPDG565-N120R12 SPDG565-N120R12 SPDG570-N120R12 SPDG570-N120R12 SPDG575-N120R12 SPDG575-N120R12
STC NMOT STC NMOT STC NMOT STC NMOT
Power (Pmax/W) 560 423.6 565 427.6 570 431.8 575 435.9
Maximum power voltage (Vmp) 37.29 35 37.52 35.2 37.75 35.5 37.98 35.7
Maximum power current (Imp) 15.02 12.11 15.06 12.14 15.1 12.18 15.14 12.21
Open circuit voltage (Voc) 44.56 42.2 44.79 42.5 45.02 42.7 45.25 43
Short circuit current (Isc) 15.91 12.81 15.95 12.84 15.99 12.88 16.03 12.91
Module efficiency 22.74% 22.94% 23.14% 23.35%

STC ( Electrical parameters at standard test conditions. STC: AM=1.5, 1000W/m², Cells Temperature25℃ )

NMOT ( Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s )

Electrical Parameters At NMOT Test Conditions

ELECTRICAL CHARACTERISTICS WITH 15% REAR SIDE POWER GAIN
Front power Pmax/W 644 649.75 655.5 661.25
Maximum power voltage (Vmp) 37.29 37.52 37.75 37.98
Maximum power current (Imp) 17.27 17.32 17.36 17.41
Open circuit voltage (Voc) 44.56 44.79 45.02 45.25
Short circuit current (Isc) 18.3 18.34 18.39 18.43
Mechanical Data
Module size (L*W*H) 2172x1134x35mm
Weight 29.5kg
Cell 120 cells, N-type Mono-Crystalline, 182.2mm×105 mm
Front glass 2.0mm, Anti-Reflection Coating
Back glass 2.0mm, Heat-Strengthened Glass
Frame Anodized aluminum alloy
Junction box IP68, 3 bypass diodes
Output wire 4mm²
Wire length Line length 1300mm/customized
Connector MC4 Compatible
Packing Specification 31 pcs/Pallet ; 620 pcs/40’HQ
