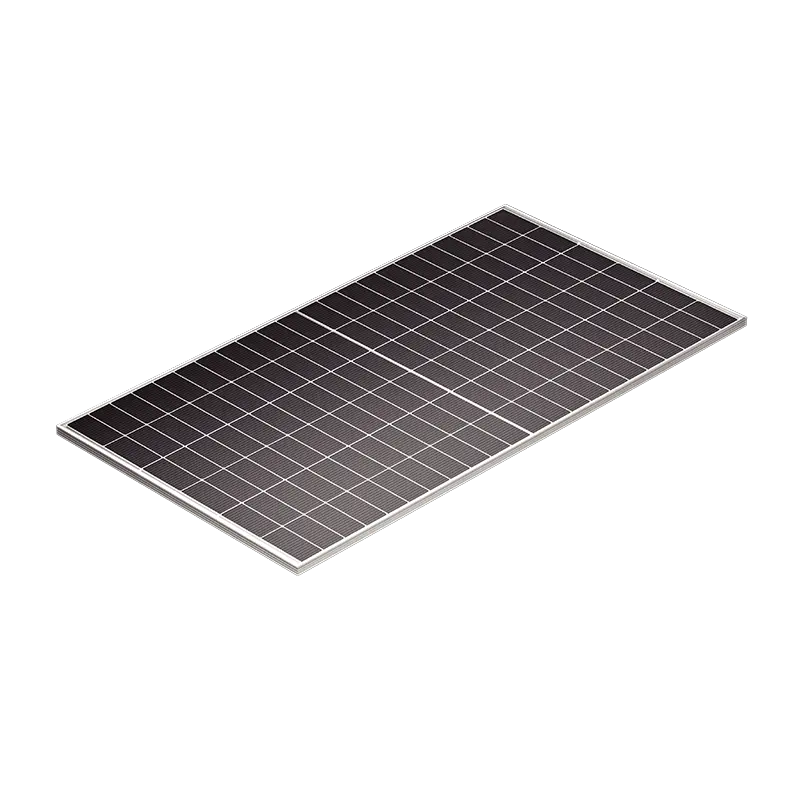

SPDGxxx-N132R10 (530-545W) Silver Frame White Mesh

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SPDGxxx-N132R10 (530-545W) Silver Frame White Mesh
PREV：SPDGxxx-N120R10 (485-500W) Silver Frame White Mesh
NEXT：SPDGxxx-N144R10 (580-595W) Silver Frame White Mesh
Electrical Parameters At Standard Test Conditions
Model of modules SPDG530-N132R10 SPDG535-N132R10 SPDG540-N132R10 SPDG545-N132R10
STC NMOT STC NMOT STC NMOT STC NMOT
Power (Pmax/W) 530 400.2 535 404.1 540 408.1 545 411.9
Maximum power voltage (Vmp) 39.53 37.6 39.66 37.7 39.8 37.9 39.96 38
Maximum power current (Imp) 13.41 10.66 13.49 10.72 13.57 10.78 13.64 10.84
Open circuit voltage (Voc) 47.72 45.1 47.87 45.2 48.01 45.4 48.14 45.5
Short circuit current (Isc) 13.96 11.25 14.03 11.31 14.11 11.37 14.19 11.44
Module efficiency 21.79% 21.99% 22.2% 22.41%

STC ( Electrical parameters at standard test conditions. STC: AM=1.5, 1000W/m², Cells Temperature25℃ )

NMOT ( Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s )

Electrical Parameters At NMOT Test Conditions

ELECTRICAL CHARACTERISTICS WITH 15% REAR SIDE POWER GAIN
Front power Pmax/W 609.5 615.25 621 626.75
Maximum power voltage (Vmp) 39.53 39.66 39.8 39.96
Maximum power current (Imp) 15.42 15.51 15.6 15.68
Open circuit voltage (Voc) 47.72 47.87 48.01 48.14
Short circuit current (Isc) 16.05 16.13 16.23 16.32
Mechanical Data
Module size (LWH) 2145x1134x35mm
Weight 29.2kg
Cell 132 cells, N-type Mono-Crystalline, 182mm×93.4mm
Front glass 2.0mm, Anti-Reflection Coating
Back glass 2.0mm, Heat-Strengthened Glass
Frame Anodized aluminum alloy
Junction box IP68, 3 bypass diodes
Output wire 4mm²
Wire length Line length 1300mm/customized
Connector MC4 Compatible
Packing Specification 31 pcs/Pallet ; 682 pcs/40’HQ
