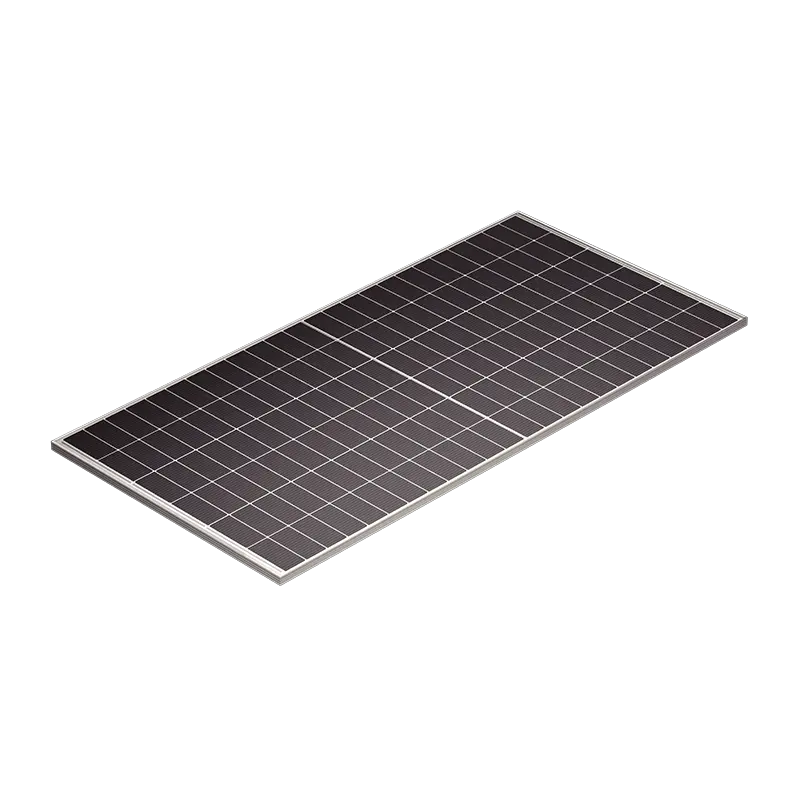

SPDGxxx-N144RL10 (595-610W) Silver Frame White Mesh

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SPDGxxx-N144RL10 (595-610W) Silver Frame White Mesh
PREV：SPDGxxx-N132RL10 (545-560W) Silver Frame White Mesh
NEXT：SPDGxxx-N132RX10 (575-590W) Silver Frame White Mesh
Electrical Parameters At Standard Test Conditions
Model of modules SPDG595-N144RL10 SPDG595-N144RL10 SPDG600-N144RL10 SPDG600-N144RL10 SPDG605-N144RL10 SPDG605-N144RL10 SPDG610-N144RL10 SPDG610-N144RL10
STC NMOT STC NMOT STC NMOT STC NMOT
Power (Pmax/W) 595 448.4 600 452.4 605 456.4 610 460.5
Maximum power voltage (Vmp) 43.53 40.4 43.74 40.6 43.94 40.7 44.14 41
Maximum power current (Imp) 13.67 11.11 13.72 11.15 13.77 11.2 13.82 11.24
Open circuit voltage (Voc) 51.33 48.4 51.54 48.6 51.74 48.8 51.94 49.1
Short circuit current (Isc) 14.55 11.72 14.6 11.76 14.66 11.81 14.71 11.85
Module efficiency 22.01% 22.19% 22.38% 22.56%

STC ( Electrical parameters at standard test conditions. STC: AM=1.5, 1000W/m², Cells Temperature25℃ )

NMOT ( Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s )

Electrical Parameters At NMOT Test Conditions

ELECTRICAL CHARACTERISTICS WITH 15% REAR SIDE POWER GAIN
Front power Pmax/W 684.25 690 695.75 701.5
Maximum power voltage (Vmp) 43.53 43.74 43.94 44.14
Maximum power current (Imp) 15.72 15.78 15.83 15.89
Open circuit voltage (Voc) 51.33 51.54 51.74 51.94
Short circuit current (Isc) 16.73 16.79 16.86 16.92
Mechanical Data
Module size (L*W*H) 2382x1134x35mm
Weight 32.4kg
Cell 144 cells, N-type Mono-Crystalline, 182.2mm×95.8mm
Front glass 2.0mm, Anti-Reflection Coating
Back glass 2.0mm, Heat-Strengthened Glass
Frame Anodized aluminum alloy
Junction box IP68, 3 bypass diodes
Output wire 4mm²
Wire length Line length 1300mm/customized
Connector MC4 Compatible
Packing Specification 31 pcs/Pallet ; 620 pcs/40’HQ
