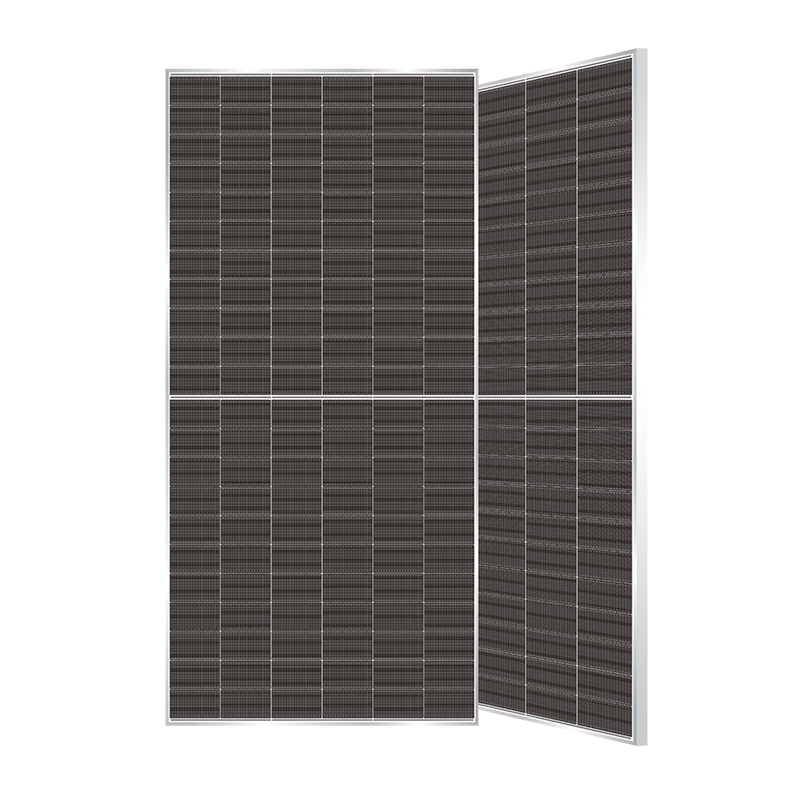

SP-210R-132DSxxx (600-630W) Silver Frame White Mesh

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SP-210R-132DSxxx (600-630W) Silver Frame White Mesh
PREV：SP-210-132DSxxx (695-725W) Silver Frame White Mesh
NEXT：No previous article
Electrical Parameters At Standard Test Conditions
Model of modules SP600W-210R-132DS SP610W-210R-132DS SP620W-210R-132DS SP630W-210R-132DS
STC NMOT STC NMOT STC NMOT STC NMOT
Power (Pmax/W) 600 458.4 610 466.1 620 473.7 630 481.5
Maximum power voltage (Vmp) 40.69 38.7 40.85 38.8 41.05 39 41.23 39.1
Maximum power current (Imp) 14.76 11.85 14.95 12 15.12 12.15 15.3 12.3
Open circuit voltage (Voc) 48.75 46.5 48.94 46.7 49.15 46.9 49.34 47.1
Short circuit current (Isc) 15.56 12.52 15.76 12.68 15.96 12.84 16.16 13
Module efficiency 22.21% 22.58% 22.95% 23.32%

STC ( Electrical parameters at standard test conditions. STC: AM=1.5, 1000W/m², Cells Temperature25℃ )

NMOT ( Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s )

IRRADIANCE 800W/M²，AMBIENT TEMPERATURE 20 , AM1.5,WIND SPEED 1M/S
Front power Pmax/W 690.00 701.50 713.00 724.50
Maximum power voltage ( Vmp ) 40.69 40.85 41.05 41.23
Maximum power current ( Imp ) 16.96 17.17 17.37 17.57
Open circuit voltage ( Voc ) 48.75 48.94 49.15 49.34
Short circuit current ( Isc ) 17.88 18.10 18.33 18.56
Mechanical Data
Dimensions 2382×1134×30mm
Weight 32.6kg
Cell 132 cell(Half-Cell),Mono-Crystalline ,Bifacial HJT, 210x105mm
Glass
(F) 2.0mm ultra clear embossed semi-tempered coated glass
(B) 2.0mm white mesh semi-tempered glass
Frame
Anodized aluminum alloy
Junction box
IP68
Output wire 4mm²
Wire length 1300mm
Connector
 MC4 Compatible IP68
Packing Specification
 36 pcs/Pallet ; 720 pcs/40’HQ
