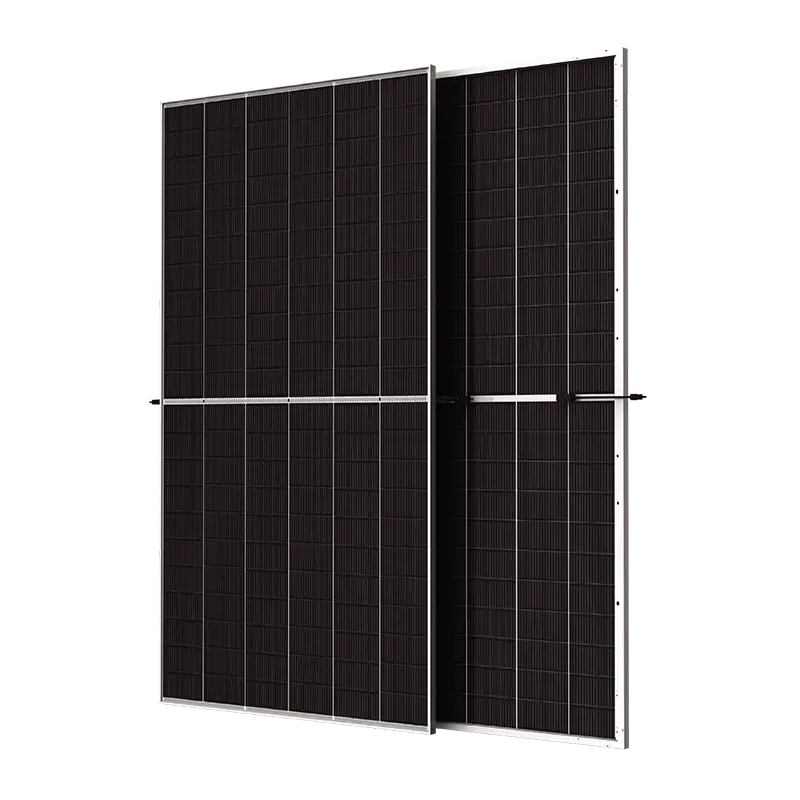

SPDGxxx-N132M12 (710-725W) Silver Frame White Mesh

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SPDGxxx-N132M12 (710-725W) Silver Frame White Mesh
PREV：SPDGxxx-N120M12 (645-660W) Silver Frame White Mesh
NEXT：SPxxx-N120M12 (630-645W) Silver Frame White Mesh
Electrical Parameters At Standard Test Conditions
Model of modules SPDG710-N132M12 SPDG715-N132M12 SPDG720-N132M12 SPDG725-N132M12
STC NMOT STC NMOT STC NMOT STC NMOT
Power (Pmax/W) 710 537.9 715 541.9 720 546 725 549.9
Maximum power voltage (Vmp) 40.88 38.4 41.07 38.6 41.27 38.8 41.46 39
Maximum power current (Imp) 17.37 14.01 17.41 14.04 17.45 14.07 17.49 14.11
Open circuit voltage (Voc) 48.65 46.2 48.84 46.4 49.03 46.6 49.23 46.8
Short circuit current (Isc) 18.4 14.8 18.44 14.83 18.48 14.86 18.52 14.9
Module efficiency 22.86% 23.02% 23.18% 23.34%

STC ( Electrical parameters at standard test conditions. STC: AM=1.5, 1000W/m², Cells Temperature25℃ )

NMOT ( Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s )

Electrical Parameters At NMOT Test Conditions

ELECTRICAL CHARACTERISTICS WITH 15% REAR SIDE POWER GAIN
Front power Pmax/W 816.5 822.25 828 833.75
Maximum power voltage (Vmp) 40.88 41.07 41.27 41.46
Maximum power current (Imp) 19.97 20.02 20.06 20.11
Open circuit voltage (Voc) 48.65 48.84 49.03 49.23
Short circuit current (Isc) 21.16 21.21 21.25 21.3
Mechanical Data
Module size (L*W*H) 2384x1303x35mm
Weight 37.5kg
Cell 132 cells,N type Mono-Crystalline , 210mm×105mm
Front glass 2.0mm, Anti-Reflection Coating
Back glass 2.0mm , Heat Strengthened Glass
Frame Anodized aluminum alloy
Junction box IP68, 3 bypass diodes
Output wire 4mm²
Wire length Line length 1300mm/customized
Connector MC4 Compatible
Packing Specification 31 pcs/Pallet ; 558 pcs/40’HQ
