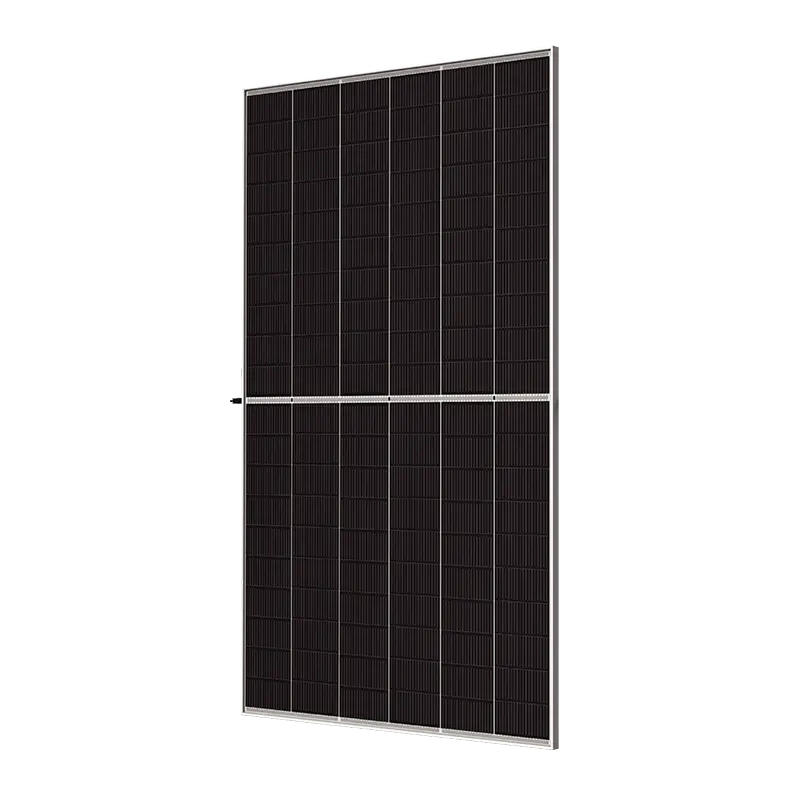

SPxxx-N120M12 (630-645W) Silver Frame White Mesh

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SPxxx-N120M12 (630-645W) Silver Frame White Mesh
PREV：SPDGxxx-N132M12 (710-725W) Silver Frame White Mesh
NEXT：SPxxx-N132M12 (695-710W) Silver Frame White Mesh
Electrical Parameters At Standard Test Conditions
Model of modules SP630-N120M12 SP635-N120M12 SP640-N120M12 SP645-N120M12
STC STC STC STC
Power (Pmax/W) 630 635 640 645
Maximum power voltage (Vmp) 36.51 36.71 36.89 37.09
Maximum power current (Imp) 17.26 17.3 17.35 17.39
Open circuit voltage (Voc) 43.44 43.64 43.84 44.05
Short circuit current (Isc) 18.34 18.38 18.41 18.45
Module efficiency 22.26% 22.44% 22.61% 22.79%

STC ( Electrical parameters at standard test conditions. STC: AM=1.5, 1000W/m², Cells Temperature25℃ )

NMOT ( Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s )

Electrical Parameters At NMOT Test Conditions

IRRADIANCE 800W/M², AMBIENT TEMPERATURE 20℃, AM1.5, WIND SPEED 1M/S
Front power Pmax/W 476.3 480.3 484.2 488.3
Maximum power voltage (Vmp) 34.2 34.4 34.5 34.7
Maximum power current (Imp) 13.95 13.98 14.02 14.05
Open circuit voltage (Voc) 41.1 41.4 41.6 41.8
Short circuit current (Isc) 14.75 14.78 14.81 14.84
Mechanical Data
Module size (L*W*H) 2172×1303x35mm
Weight 29.2kg
Cell 120 cells, N-Type Crystalline Silicon 210x105mm
Glass 3.2mm ultra clear embossed tempered coated glass
Frame Anodized aluminum alloy
Junction box IP68, 3 bypass diodes
Output wire 4mm²
Wire length Line length 1300mm/customized
Connector MC4 Compatible
Packing Specification 31 pcs/Pallet ; 558 pcs/40’HQ
