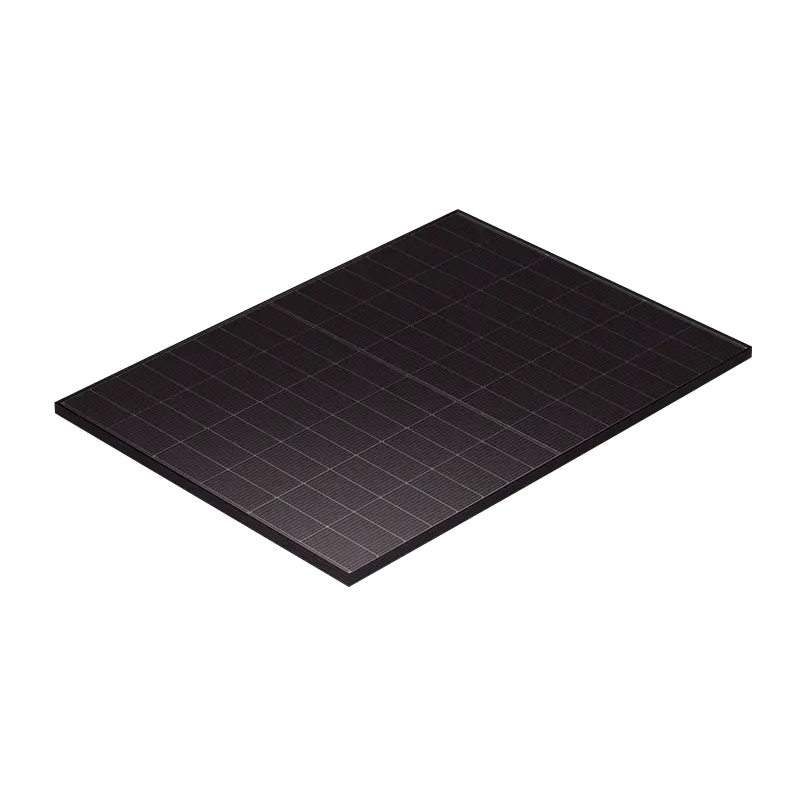

SPDGxxx-N96R12 (445-460W) Black Frame Black Mesh

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SPDGxxx-N96R12 (445-460W) Black Frame Black Mesh
PREV：SPxxx-N156R10 (630-645W) Silver Frame White Backboard
NEXT：SPDGxxx-N96R12 (460-475W) Black Frame White Mesh
Electrical Parameters At Standard Test Conditions
Model of modules SPDG445-N96R12 SPDG445-N96R12 SPDG450-N96R12 SPDG450-N96R12 SPDG455-N96R12 SPDG455-N96R12 SPDG460-N96R12 SPDG460-N96R12
STC NMOT STC NMOT STC NMOT STC NMOT
Power (Pmax/W) 445 336.5 450 340.7 455 344.8 460 348.9
Maximum power voltage (Vmp) 29.69 27.9 29.93 28.1 30.16 28.4 30.39 28.6
Maximum power current (Imp) 14.99 12.06 15.04 12.11 15.09 12.14 15.14 12.18
Open circuit voltage (Voc) 35.54 33.7 35.8 33.9 36.06 34.2 36.3 34.5
Short circuit current (Isc) 15.86 12.77 15.9 12.8 15.94 12.84 15.99 12.88
Module efficiency 22.27% 22.52% 22.77% 23.02%

STC ( Electrical parameters at standard test conditions. STC: AM=1.5, 1000W/m², Cells Temperature25℃ )

NMOT ( Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s )

Electrical Parameters At NMOT Test Conditions

ELECTRICAL CHARACTERISTICS WITH 15% REAR SIDE POWER GAIN
Front power Pmax/W 511.75 517.5 523.25 529
Maximum power voltage (Vmp) 29.69 29.93 30.16 30.39
Maximum power current (Imp) 17.24 17.29 17.35 17.41
Open circuit voltage (Voc) 35.54 35.8 36.06 36.3
Short circuit current (Isc) 18.24 18.29 18.33 18.39
Mechanical Data
Module size (L*W*H) 1762x1134x35mm
Weight 23.8kg
Cell 96 cells, N-type Mono-Crystalline, 182.2mm×105 mm
Front glass 2.0mm, Anti-Reflection Coating
Back glass 2.0mm, Heat-Strengthened Glass
Frame Anodized aluminum alloy
Junction box IP68, 3 bypass diodes
Output wire 4mm²
Wire length Line length 1100mm/customized
Connector MC4 Compatible
Packing Specification 31 pcs/Pallet ; 806 pcs/40’HQ
