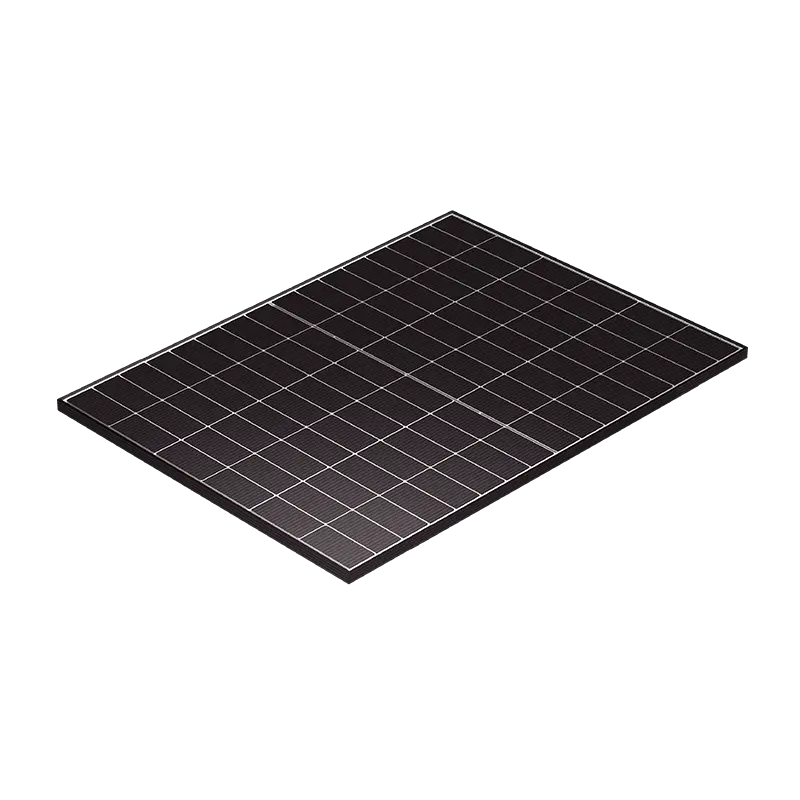

SPDGxxx-N96R12 (460-475W) Black Frame White Mesh

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SPDGxxx-N96R12 (460-475W) Black Frame White Mesh
PREV：SPDGxxx-N96R12 (445-460W) Black Frame Black Mesh
NEXT：SPDGxxx-N108R12 (500-515W) Black Frame Black Mesh
Electrical Parameters At Standard Test Conditions
Model of modules SPDG460-N96R12 SPDG460-N96R12 SPDG465-N96R12 SPDG465-N96R12 SPDG470-N96R12 SPDG470-N96R12 SPDG475-N96R12 SPDG475-N96R12
STC NMOT STC NMOT STC NMOT STC NMOT
Power (Pmax/W) 460 348.9 465 353.5 470 357.4 475 361.3
Maximum power voltage (Vmp) 30.39 28.6 30.48 28.8 30.56 28.9 30.65 29
Maximum power current (Imp) 15.14 12.18 15.26 12.28 15.38 12.38 15.5 12.47
Open circuit voltage (Voc) 36.3 34.5 36.37 34.6 36.44 34.7 36.5 34.8
Short circuit current (Isc) 15.99 12.88 16.11 12.97 16.23 13.06 16.35 13.16
Module efficiency 23.02% 23.27% 23.52% 23.77%

STC ( Electrical parameters at standard test conditions. STC: AM=1.5, 1000W/m², Cells Temperature25℃ )

NMOT ( Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s )

Electrical Parameters At NMOT Test Conditions

ELECTRICAL CHARACTERISTICS WITH 15% REAR SIDE POWER GAIN
Front power Pmax/W 529 534.75 540.5 546.25
Maximum power voltage (Vmp) 30.39 30.62 30.84 31.07
Maximum power current (Imp) 17.41 17.46 17.53 17.58
Open circuit voltage (Voc) 36.3 36.54 36.78 37.02
Short circuit current (Isc) 18.39 18.44 18.49 18.54
Mechanical Data
Module size (L*W*H) 1762x1134x30mm
Weight 23.8kg
Cell 96 cells, N-type Mono-Crystalline, 182.2mm×105 mm
Front glass 2.0mm, Anti-Reflection Coating
Back glass 2.0mm, Heat-Strengthened Glass
Frame Anodized aluminum alloy
Junction box IP68, 3 bypass diodes
Output wire 4mm²
Wire length Line length 1100mm/customized
Connector MC4 Compatible
Packing Specification 37 pcs/Pallet ; 962 pcs/40’HQ
