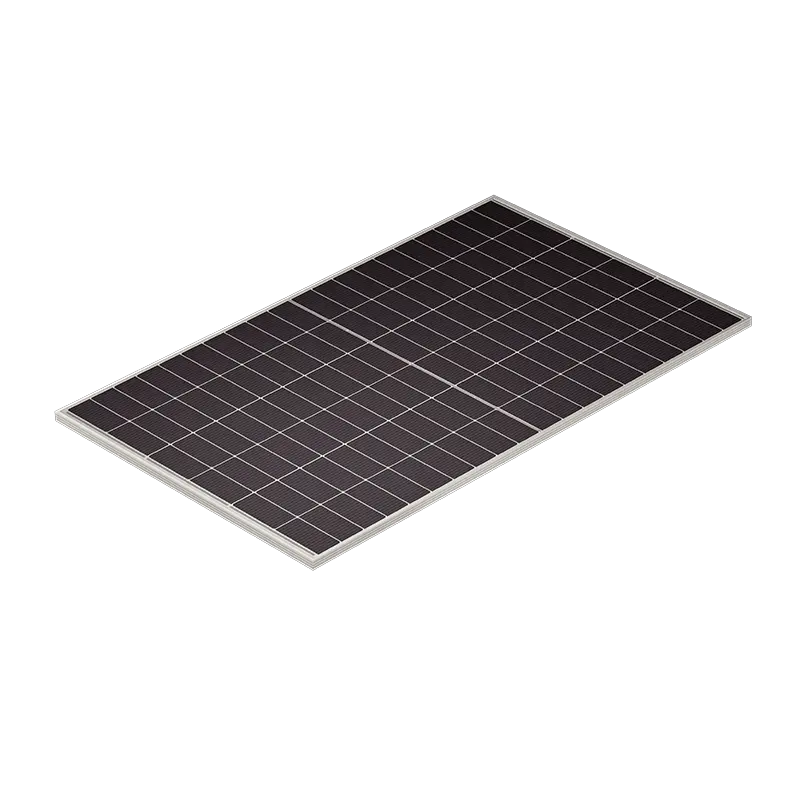

SPxxx-N120R10 (485-500W) Silver Frame White Backboard

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SPxxx-N120R10 (485-500W) Silver Frame White Backboard
PREV：SPxxx-N108R10 (435-450W) Black Frame Black Backboard
NEXT：SPxxx-N132R10 (530-545W) Silver Frame White Backboard
Electrical Parameters At Standard Test Conditions
Model of modules SP485-N120R10 SP490-N120R10 SP495-N120R10 SP500-N120R10
STC STC STC STC
Power (Pmax/W) 485 490 495 500
Maximum power voltage (Vmp) 36.04 36.19 36.35 36.53
Maximum power current (Imp) 13.46 13.54 13.62 13.69
Open circuit voltage (Voc) 43.43 43.57 43.72 43.87
Short circuit current (Isc) 14.02 14.09 14.17 14.25
Module efficiency 21.88% 22.1% 22.33% 22.55%

STC ( Electrical parameters at standard test conditions. STC: AM=1.5, 1000W/m², Cells Temperature25℃ )

NMOT ( Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s )

Electrical Parameters At NMOT Test Conditions

IRRADIANCE 800W/M², AMBIENT TEMPERATURE 20°C, AM1.5, WIND SPEED 1M/S
Front power Pmax/W 366.2 370 374 377.8
Maximum power voltage (Vmp) 34.2 34.4 34.5 34.7
Maximum power current (Imp) 10.71 10.77 10.83 10.9
Open circuit voltage (Voc) 41 41.2 41.3 41.5
Short circuit current (Isc) 11.3 11.36 11.42 11.48
Mechanical Data
Module size (L*W*H) 1955×1134x35mm
Weight 23kg
Cell 120 cells, N-Type Crystalline Silicon 182x93.4mm
Glass 3.2mm ultra clear embossed tempered coated glass
Frame Anodized aluminum alloy
Junction box IP68, 3 bypass diodes
Output wire 4mm²
Wire length Line length 1100mm/customized
Connector MC4 Compatible
Packing Specification 31 pcs/Pallet ; 744 pcs/40’HQ
