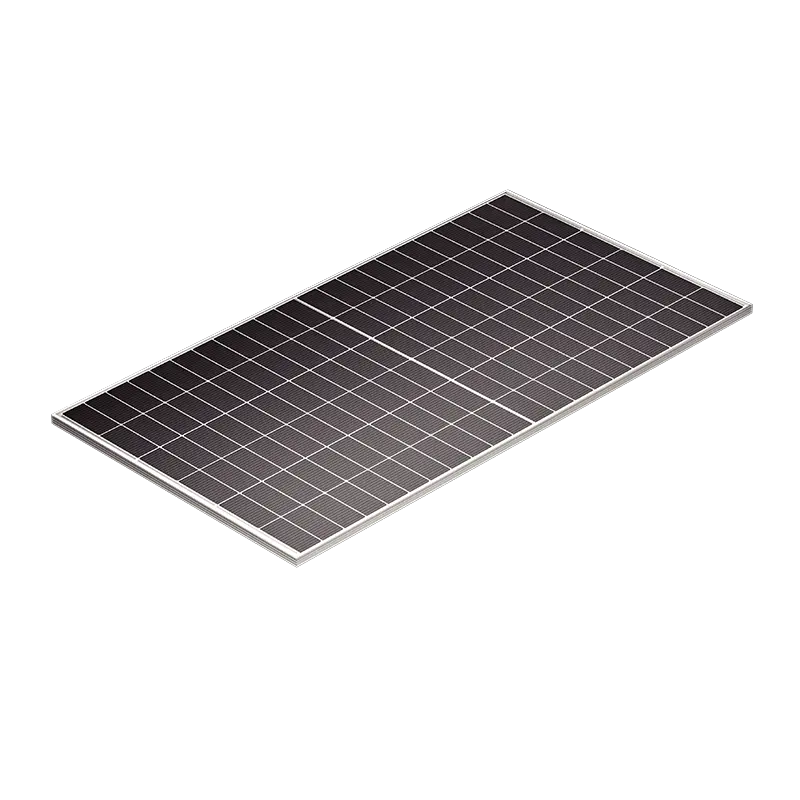

SPxxx-N132R10 (530-545W) Silver Frame White Backboard

  • Better levelized cost of energy
  • Better high temperature stability
  • Improved low-light performance
  • Excellent bifacial performance
Contact Us Download PDF
SPxxx-N132R10 (530-545W) Silver Frame White Backboard
PREV：SPxxx-N120R10 (485-500W) Silver Frame White Backboard
NEXT：SPxxx-N144R10 (580-595W) Silver Frame White Backboard
Electrical Parameters At Standard Test Conditions
Model of modules SP530-N132R10 SP535-N132R10 SP540-N132R10 SP545-N132R10
STC STC STC STC
Power (Pmax/W) 530 535 540 545
Maximum power voltage (Vmp) 39.53 39.66 39.8 39.96
Maximum power current (Imp) 13.41 13.49 13.57 13.64
Open circuit voltage (Voc) 47.72 47.87 48.01 48.14
Short circuit current (Isc) 13.96 14.03 14.11 14.19
Module efficiency 21.79% 21.99% 22.2% 22.41%

STC ( Electrical parameters at standard test conditions. STC: AM=1.5, 1000W/m², Cells Temperature25℃ )

NMOT ( Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s )

Electrical Parameters At NMOT Test Conditions

IRRADIANCE 800W/M², AMBIENT TEMPERATURE 20°C, AM1.5, WIND SPEED 1M/S
Front power Pmax/W 400.2 404.1 408.1 411.9
Maximum power voltage (Vmp) 37.6 37.7 37.9 38
Maximum power current (Imp) 10.66 10.72 10.78 10.84
Open circuit voltage (Voc) 45.1 45.2 45.4 45.5
Short circuit current (Isc) 11.25 11.31 11.37 11.44
Mechanical Data
Module size (L*W*H) 2145×1134×35mm
Weight 25.3kg
Cell 132 cells, N-Type Crystalline Silicon 182x93.4mm
Glass 3.2mm ultra clear embossed tempered coated glass
Frame Anodized aluminum alloy
Junction box IP68, 3 bypass diodes
Output wire 4mm²
Wire length Line length 1300mm/customized
Connector MC4 Compatible
Packing Specification 31 pcs/Pallet ; 682 pcs/40’HQ
